Product Range

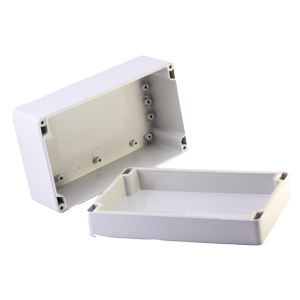

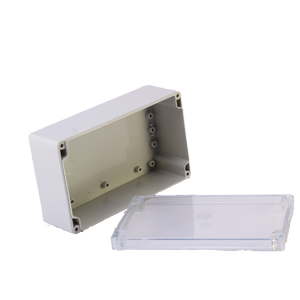

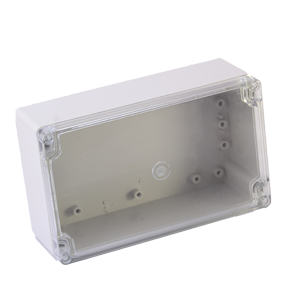

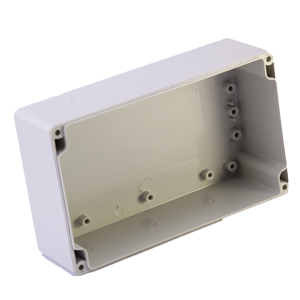

Polycarbonate Enclosures Junction Boxes
We manufacture premium quality Polycarbonate Enclosures (Junction Boxes) like Industrial Polycarbonate Enclosures and Wall Mount Polycarbonate Enclosure. These are quality tested on well defined parameters before being delivered to our clients. We also meet customized requirement and offer our range at industry leading prices.
| Protection Spec | IP 65 acc DIN EN 60529/ DIN 40050. |
| Material | ABS/Polycarbonate (UV Resistance) |
| Rubber seal | Foamed Neoprene Seal |
| Color | Light Gray (RAL 7035) (Special colors on request) |
| Installation temperature | 5°C to 80°C (ABS) and 100°C (Polycarbonate) |
| Temperature Resistance | max 100°C 60695 10-2. |
| Sr.No. | ABS Enclosures /Junction Boxes | |
| 1 | BE-553APC | 50x52x35 mm |
| 2 | BE-563APC | 50x65x35 mmm |
| 3 | BE-885APC | 80x82x55 mm |
| 4 | BE-888APC | 80x82x85 mm |
| 5 | BE-815APC | 80x120x55 mm |
| 6 | BE-80165APC | 80x160x55 mm |
| 7 | BE-80215APC | 80x210x55 mm |
| 8 | BE-818APC | 80x120x85 mm |
| 9 | BE-101060APC | 100x100x60 mm |
| 10 | BE-101080APC | 100x100x80 mm |
| 11 | BE-117APC | 122x125x75 mm |
| 12 | BE-121470APC | 120x140x70 mm |
| 13 | BE-121410APC | 120x140x100 mm |
| 14 | BE-127APC | 120x200x75 mm |
| 15 | BE-129APC | 120x200x90 mm |
| 16 | BE-121765APC | 125x170x65 mm |
| 17 | BE-121785APC | 125x170x85 mm |
| 18 | BE-151575APC | 150x150x75 mm |
| 19 | BE-151510APC | 150x150x100 mm |
| 20 | BE-1259APC | 160x250x90 mm |
| 21 | BE-12515APC | 160x250x115 mm |
| 22 | BE-253085APC | 250x300x85 mm |
| 23 | BE-253011APC | 250x300x110 mm |
| 24 | BE-253015APC | 250x300x150 mm |
| 25 | BE-253017APC | 250x300x170 mm |

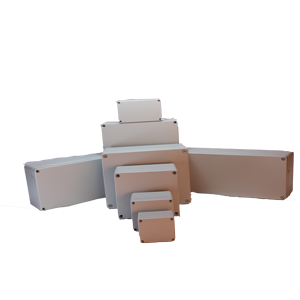

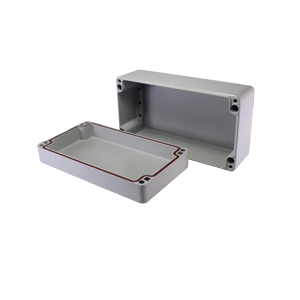

Aluminium Enclosures Junction Boxes
We are a renowned name engaged in providing a wide range of Aluminium Enclosures (Junction Boxes) that is manufactured from quality tested raw materials. Known for its excellent quality, durability, dimensional accuracy and shock resistance these are widely used in Electric and Electronic industries nationwide.
| Protection Spec | IP 65 acc DIN EN 60529/ DIN 40050. |
| Material | Aluminium |
| Rubber seal | Foamed Neoprene Seal |
| Color | Light Gray (RAL 7035) (Special colors on request) |
| Temperature Resistance | 200°c |
| Sr.No. | Aluminium Enclosures/Junction Boxes | |
| 1 | BE-45503AL | 45x50x30 mm |
| 2 | BE-58643AL | 58x64x34 mm |
| 3 | BE-64983AL | 64x98x34 mm |
| 4 | BE-75805AL | 75x80x57 mm |
| 5 | BE-64153AL | 64x150x34 mm |
| 6 | BE-80125AL | 80x125x57 mm |
| 7 | BE-118AL | 100x160x80 mm |
| 8 | BE-10108AL | 100x100x81 mm |
| 9 | BE-80175AL | 80x175x57 mm |
| 10 | BE-80225AL | 80x250x54 mm |
| 11 | BE-12128AL | 120x122x81 mm |
| 12 | BE-12129AL | 120x122x91 mm |
| 13 | BE-12228AL | 120x220x81 mm |
| 14 | BE-1229AL | 120x220x91 mm |
| 15 | BE-119AL | 160x160x90 mm |
| 16 | BE-1269AL | 160x260x90 mm |
| 17 | BE-221AL | 200x230x110 mm |
| 18 | BE-139AL | 160x360x90 mm |
| 19 | BE-232811AL | 230x280x110 mm |
| 20 | BE-233011AL | 230x330x110 mm |
| 21 | BE-233018AL | 230x330x180 mm |
| 22 | Aluminium 1 Way Push Button Enclosure | |
| 23 | Aluminium 2 Way Push Button Enclosure | |

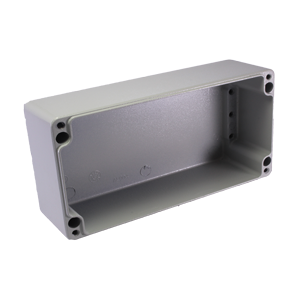

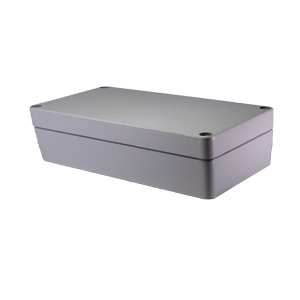

Aluminium Junction Boxes
We are a renowned name engaged in providing a wide range of Aluminium Enclosures that is manufactured from quality tested raw materials.
- Material: Aluminum
- Size: various sizes i.e W-10, W-12,W-14, W-16,W-20.
- Color : Gray
Specifications
| Material | Aluminum |
| Size | various sizes i.e W-10, W-12,W-14, W-16,W-20 |
| Color | Gray |
